Infrastructure

Facility

Radore Data Center, which was established on a total area of 3.020 m² including 960 m² of white area, is located on the -4th floor of MetroCity Shopping Mall in Levent, Istanbul.

MetroCity Shopping Mall, which was opened in 2003, was built on the Metro transportation line. Internet infrastructure throughout Turkey is located on the Metro transportation line. Radore Data Center, which is located at a strategic point in terms of internet, is directly connected to Internet Service Providers (ISPs).

MetroCity Shopping Mall is under control 24/7 via advanced security systems, fire warning, fire extinguishing and smoke evacuation systems. The building is designed by NFPA (The National Fire Protection Association) standards. Measures have been taken to ensure the effective operation of the fire extinguishing system in the event of an earthquake and a valve system that cuts off natural gas has been installed. At the entrances of the building, there are fire brigade connection openings so that the fire brigade can easily intervene in the fire in case of possible situations.

Power

Radore Data Center's power capacity is 3.9 MW total, including white spaces, air conditioning infrastructures, office spaces, and redundant power capacity. Power is transferred to our Data Center through 3 different distribution transformers in MetroCity, two of which are main and one of which is a backup, belonging to Radore. Our transformers are connected to the medium voltage ring network. So that it is backed up by two-point feeding.

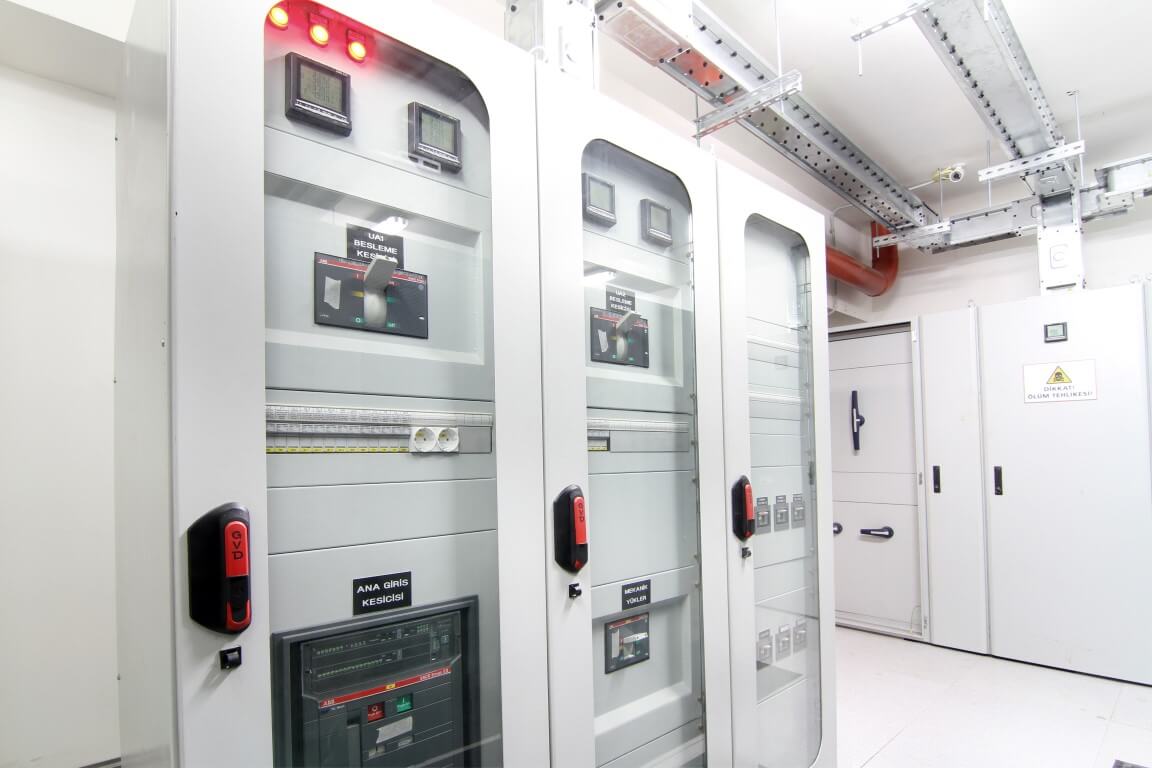

The Synchronization Control Panel monitors the power instantly for transitions (generator-generator, transformer-transformer and generator-transformer) and automatically switches in case of failure, low/insufficient voltage or frequency. During the transition, which has a maximum duration of 30 seconds, the UPS infrastructure is activated to provide uninterrupted power. The battery pack of the UPS system has the capacity to supply a minimum of 15 minutes.

Behind the one-to-one redundant and auto-switch transformer system are 3 x 1,875 kVA Caterpillar (CAT) diesel generators, ready and automatically waiting to generate power to the data center in the event of grid power failure. For these generators, there are 3 units of 3.5 ton fuel tanks belonging to Radore, which have the capacity to feed the entire system for a total of 36 hours.

In addition, there is 1 shared fuel tank belonging to MetroCity with 30 tons. In case of network interruption, 10,5 ton fuel tanks feed our generators, while replenishment can be made from the backup tank to the main tank.

The UPS system used in Radore is designed as 5 x (N+1), one of which is a backup.

5 different UPS systems in the data center UPS infrastructure;

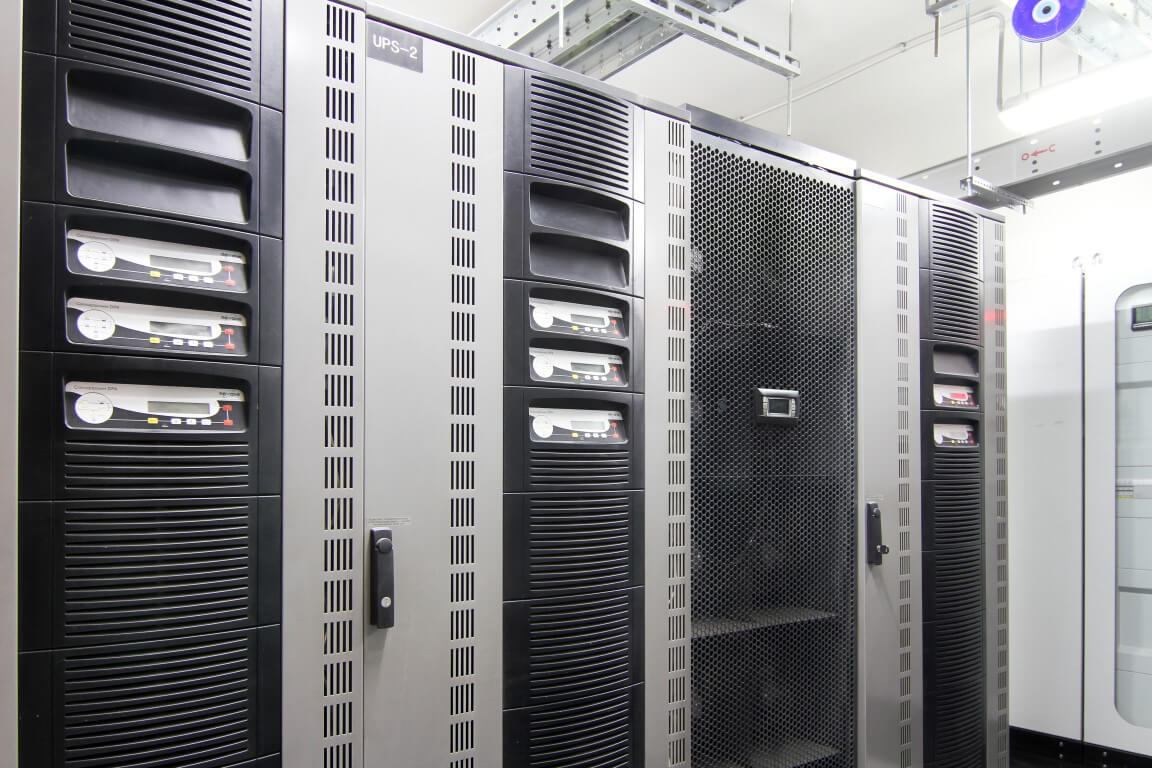

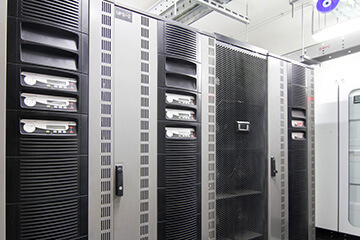

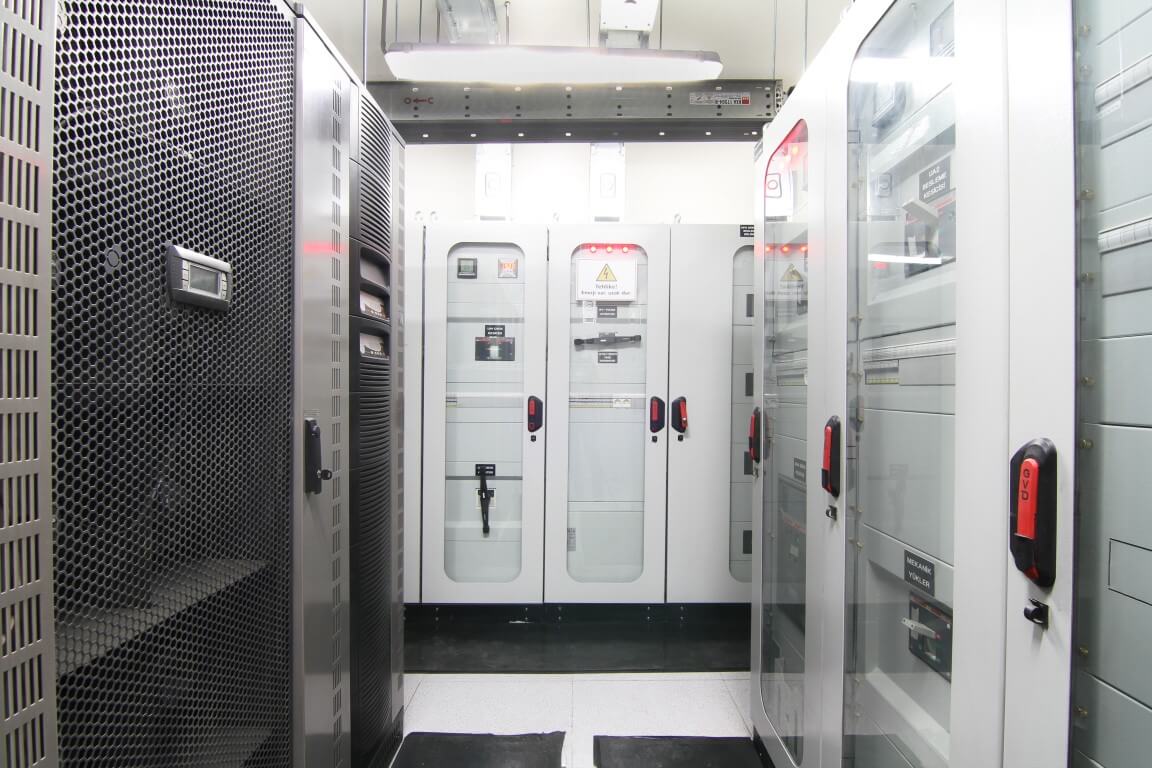

1. Group 15x50 kVA Newave (ABB) Modular UPS, (N+1)
2. Group 10x100 kVA Newave (ABB) Modular UPS, (N+1)
3. Group 8x100 kVA Newave (ABB) Modular UPS, (N+1)
4. Group 5x50 kVA Newave (ABB) Modular UPS, (N+1)

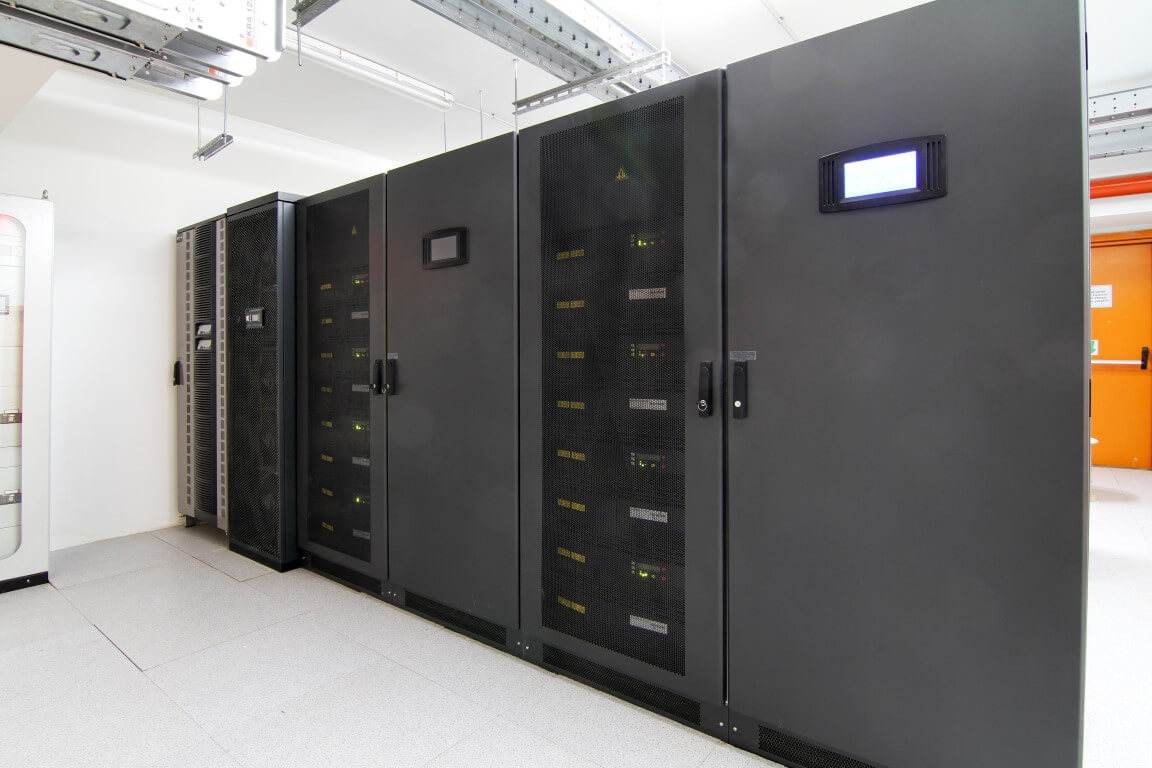

5. Group 8x60 kVA Centiel Modular UPS, (N+1)

Data center spaces are provided with double feeds, including A and B power lines for network infrastructure and offices. Power line A is powered by group 1 and group 2, and power line B is powered by group 3 UPSs. In addition, the office and network infrastructure is fed by group 5 UPSs specially allocated to these areas and providing power for a minimum of 60 minutes.

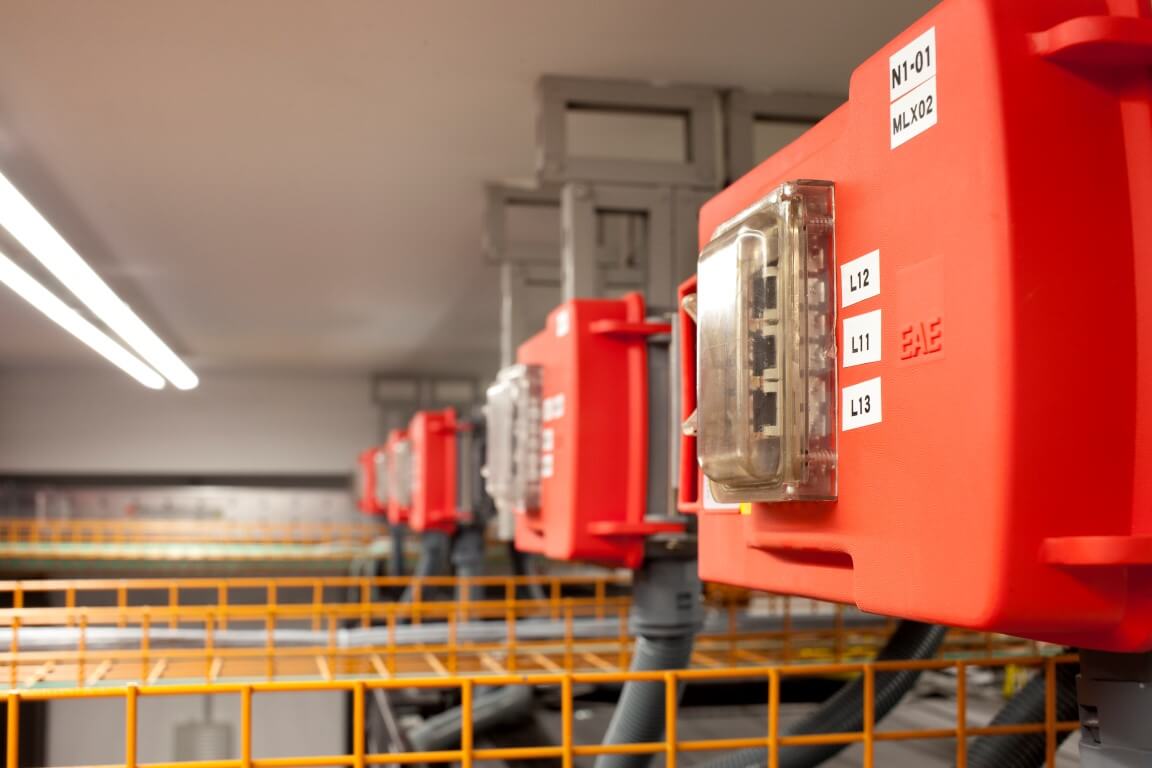

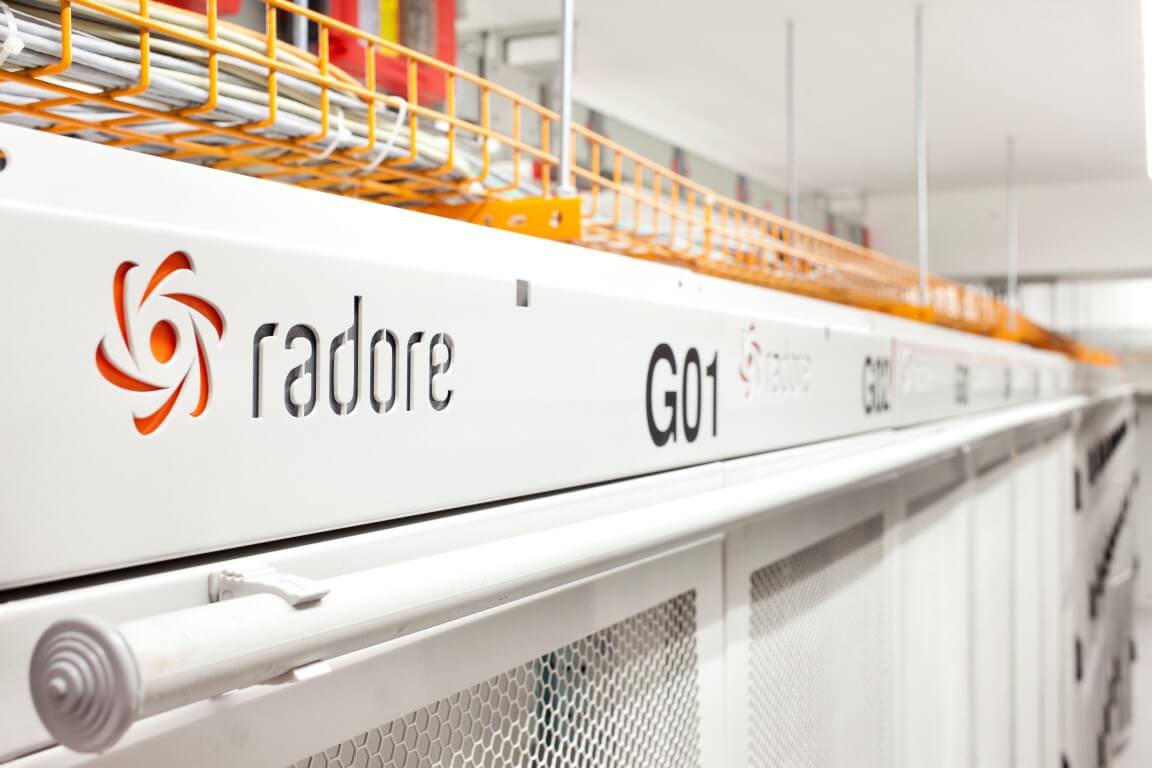

Power to the server cabinets is provided by the redundant "busbar" line. With Busbar lines, cable-hardware chaos was prevented and resilience against natural disasters was ensured. Thanks to the busbar line, technical problems can be intervened more easily and the cooling system works more efficiently.

I n addition to the redundant busbar line, the server cabinets are backed up by two different PDU (Power Distribution Units) fed from two separate UPS groups.

Cooling

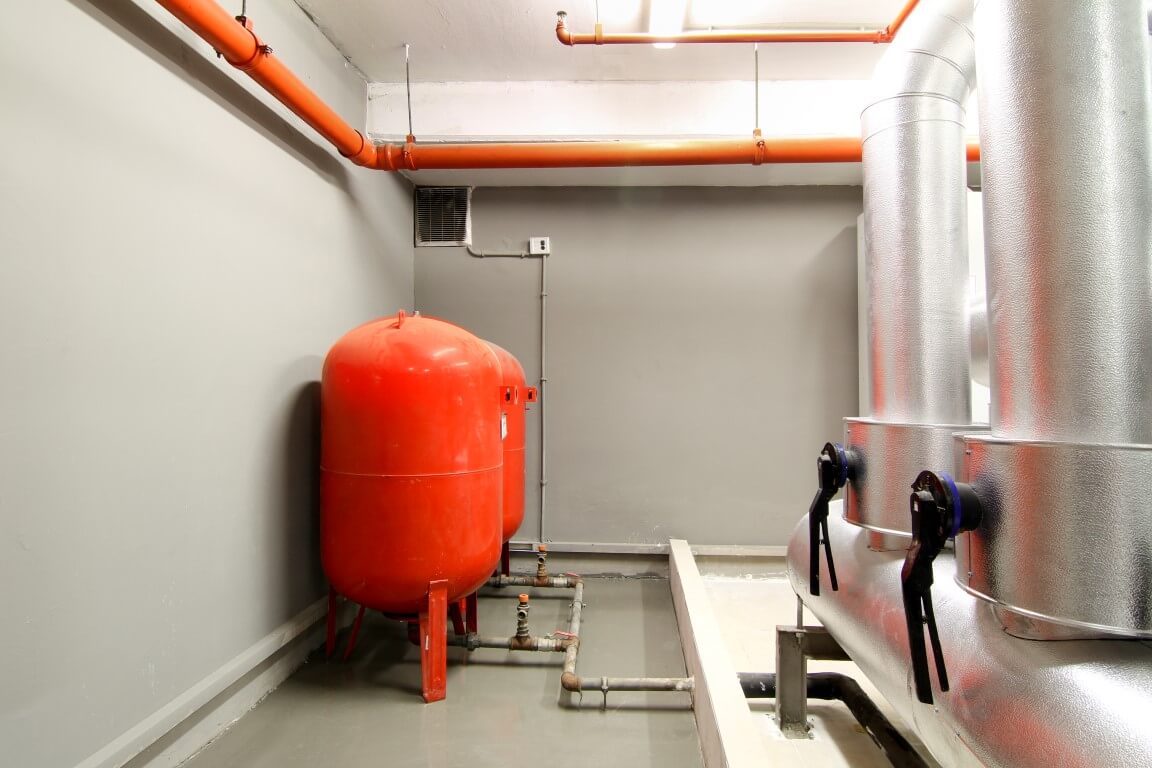

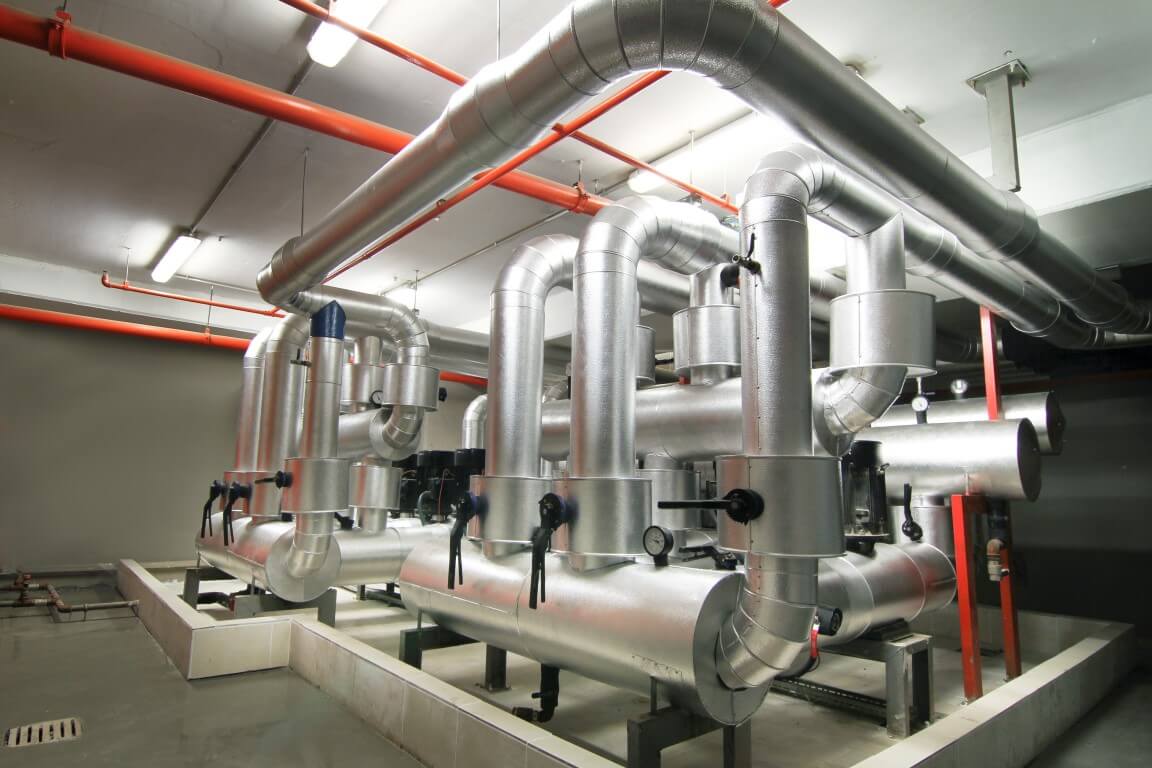

“Free cooling" method is used in Radore Data Center air conditioning. "Free cooling" is an economical air conditioning method that makes it possible to use the low air temperature in the external environment to cool the water used in air conditioning. "Free cooling" infrastructure in the data center,

840 kW x 2 + 870 kW Chiller (external units for cooling water)
Sensitive RC air-conditioners providing air circulation inside the data center (internal units)
It consists of pumps that provide the necessary pressure to transport water between these two units.

Hot air of 30-35°C trapped in hot air corridors inside the data center is absorbed by precision air conditioning units and cooled to 18-27°C by cold water from chillers. The cooled air is directed directly to the cold air intakes of the server systems. In winter, this process is carried out with natural cold air without using the compressors of the chiller units located outdoors, saving up to 70% in energy consumption. Thanks to power savings, Radore's annual PUE ratio (1,37) can be brought below industry averages.

Radore Data Center has 5,850,000 BTU of active and 2,900,000 BTU of spare cooling power. The entire air conditioning infrastructure is configured as N+1 redundant.

Physical Security

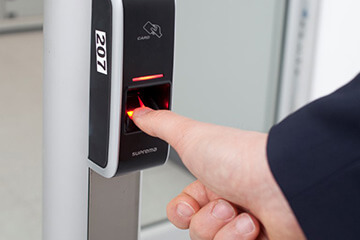

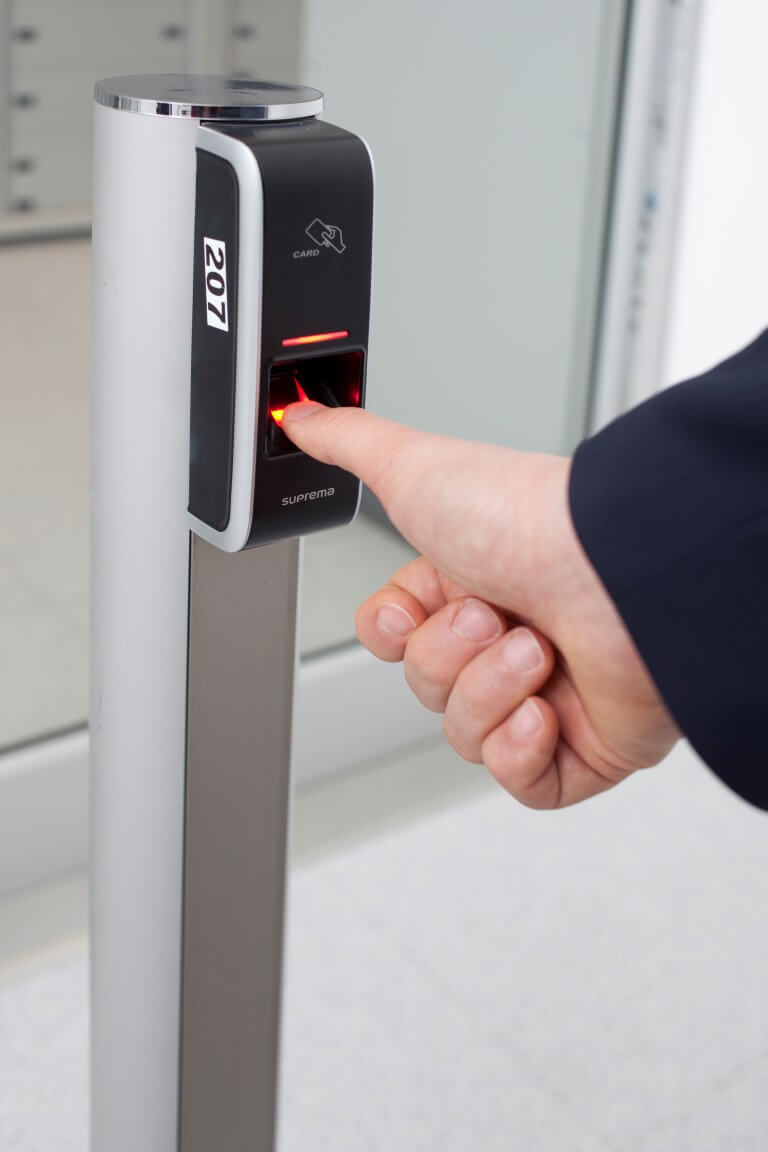

Radore Data Center is monitored digitally and physically 24 hours a day, 7 days a week. It is not possible to enter and exit MetroCity Shopping Mall, where Radore is located, except for authorized personnel outside the hours determined by the mall management. The energy and air conditioning units are located on a different floor from the data center. Only Radore Data Center stuff can enter this area.

In the areas belonging to Radore Data Center, our customers are accompanied by Operation Center officials during their visits.

In addition to MetroCity Shopping Mall, all entrances and exits in Radore Data Center are monitored digitally and physically 24 hours a day, 7 days a week and images are recorded.

In addition to physical safety measures, Honeywell aspirating smoke detectors are used in the fire detection system. Siemens and 3M Novec 1230 gas and FM200 gas systems are available in fire prevention and extinguishing systems. With water and humidity controllers with sensors, office areas and data center are kept under supervision 24/7.

Network

Radore Data Center is authorized by the Information and Communication Technologies Authority to provide internet access and hosting with the Internet Service Provider license number G-ISP-125. Radore Data Center offers internet access with 3 different internet service providers (Türk Telekom, Superonline, Turk Telekom International and Euronet) that it has established peering*.

Radore can directly connect to the fiber infrastructures of Türk Telekom, Turk Telekom International, Superonline, Vodafone, TurkNet and Grid Telekom. Connection is achieved with Juniper MX960s with a one-to-one redundancy and a total capacity of 10.56 Tbit/s. Radore customers are again connected to the network backbone via Arista switches with spine-leaf technology.

Radore network infrastructure uses 10 Gbit ethernet interfaces. A 100 Gbit ethernet access capacity is also available on request. Thanks to this high capacity used in the network, Radore Data Center can easily respond to the instant or permanent high capacity needs of its customers without making any physical or software changes on the network. In line with the needs - regardless of the single service provider - redundant internet access can be provided. All network devices at the main backbone level are supplied with redundant energy source.

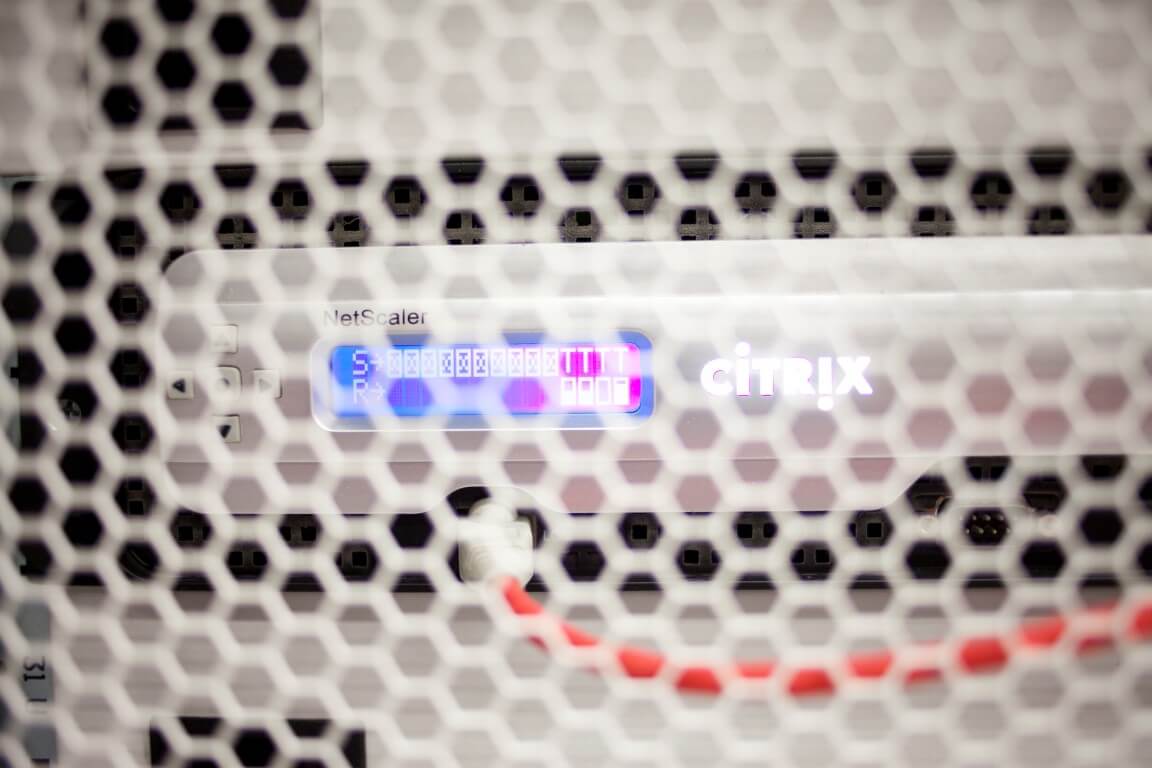

Juniper and Arista at the network layer of the data center backbone; Citrix products are used together with Arista services for services such as Fortigate firewall products, TCP multiplexing, ECMP, BGP-EVPN technology, L2-L3 VXLAN, MLAG technology, load balancing. The switches used in the cabinets can be selected from DELL, Brocade or Juniper products.

Peering: Different internet service providers voluntarily share access resources for the purpose of exchanging traffic between their users.

Monitoring

Radore Data Center Infrastructure Team is responsible for tracking, monitoring and maintaining the energy, air conditioning and security components that make up the data center infrastructure. Along with daily, weekly and monthly periodic maintenance procedures, all infrastructure components are monitored by the infrastructure team without interruption.

The parameters of the energy distribution systems are monitored and measured 24 hours a day, 7 days a week with the Energy Quality Analyzer. The data center and offices are monitored with the Fire Alarm Switchboard and the data center areas are monitored 24/7 with temperature, humidity and water level sensors at 26 points. The water flow rate, round-trip water temperatures and outdoor air temperature of the chiller compressors that make up the air conditioning infrastructure are also monitored daily.

Radore Network Team monitors all components of the network backbone with PRTG software instantly for 7 days and 24 hours for the continuity of the uninterrupted internet access we offer to our customers. (PRTG is a software that is accepted in the world and has an accuracy of 99.99% in measurement and uptime time.)

In the network infrastructure, incoming and outgoing data is monitored with Sflow software and the server is controlled instantly with Argus software.

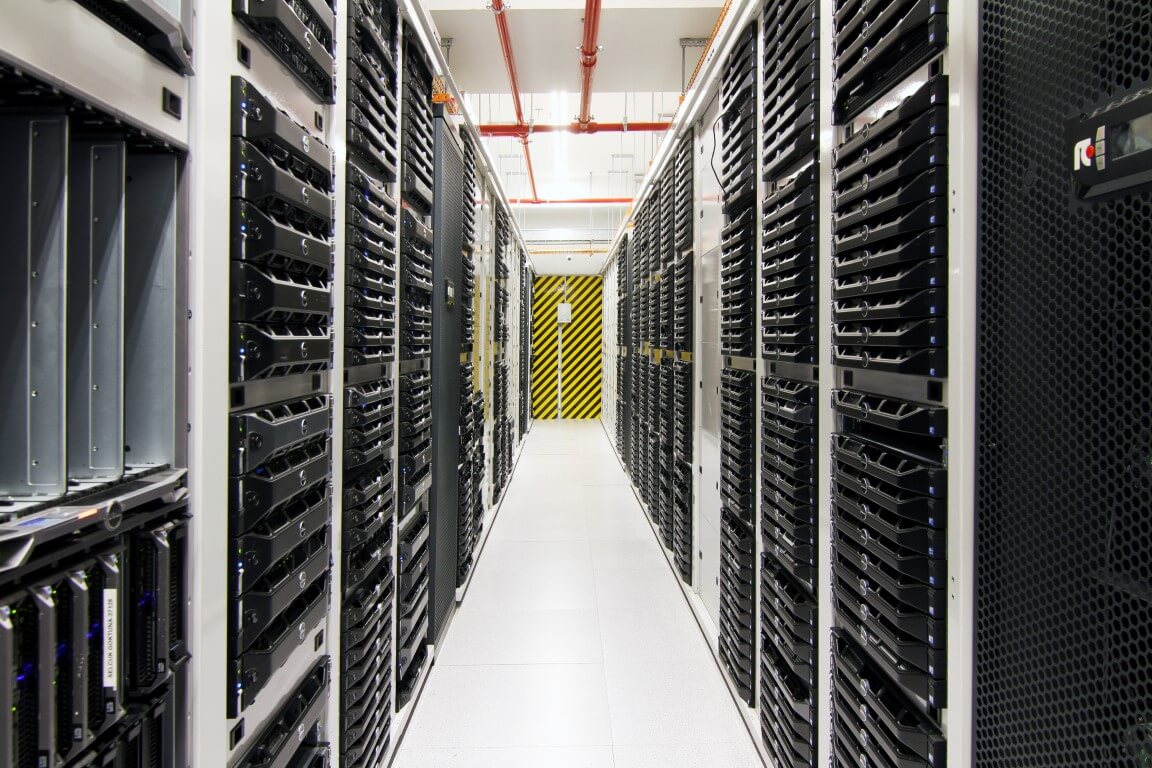

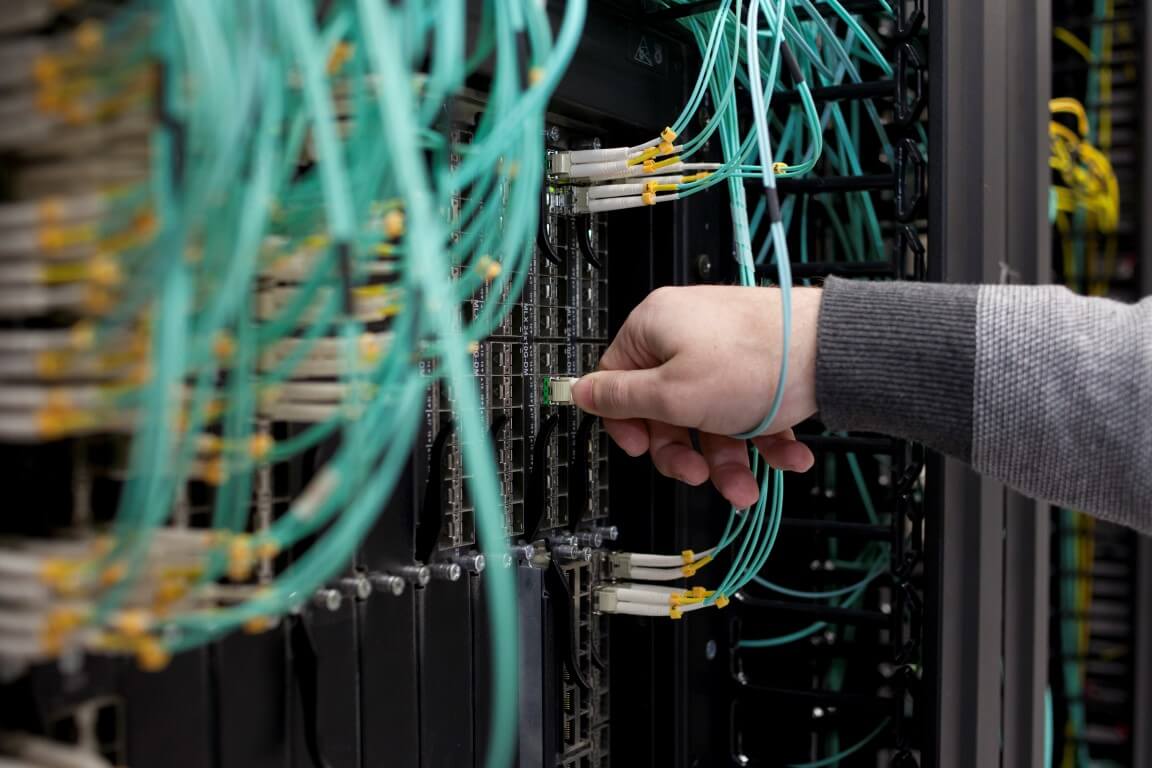

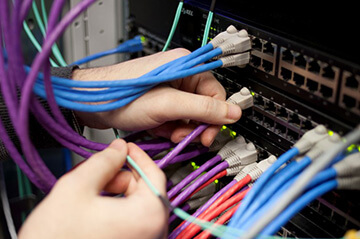

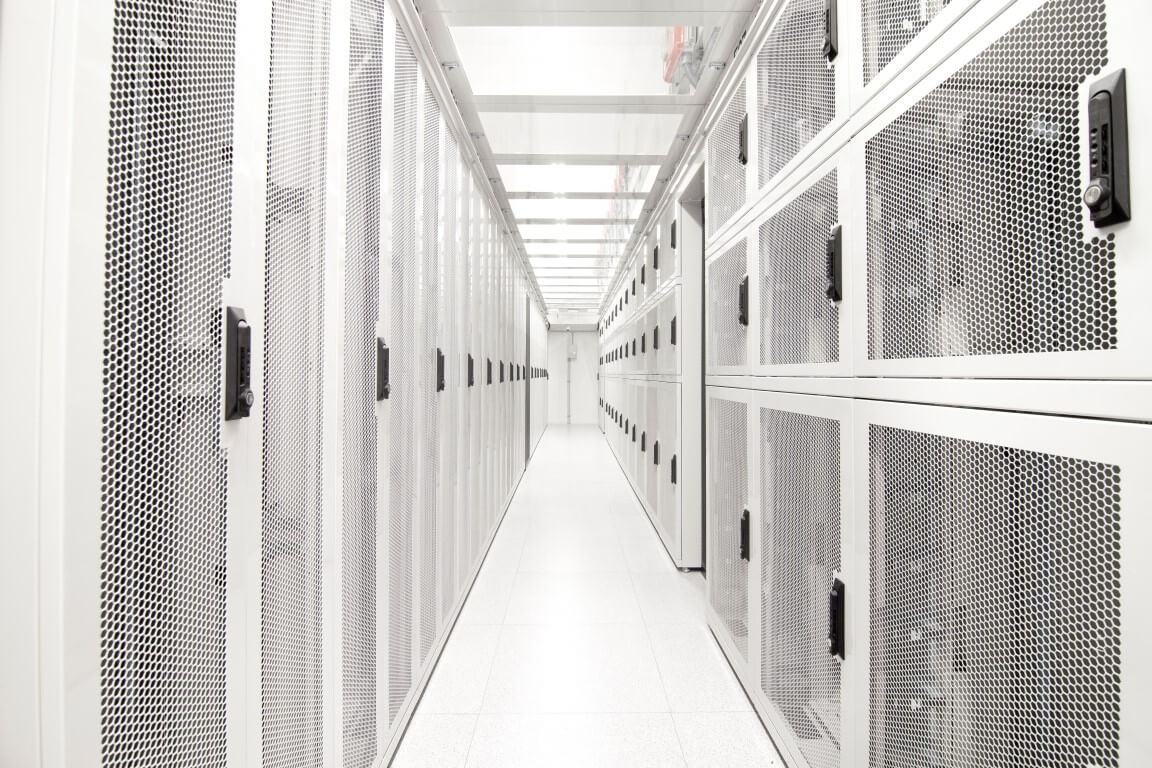

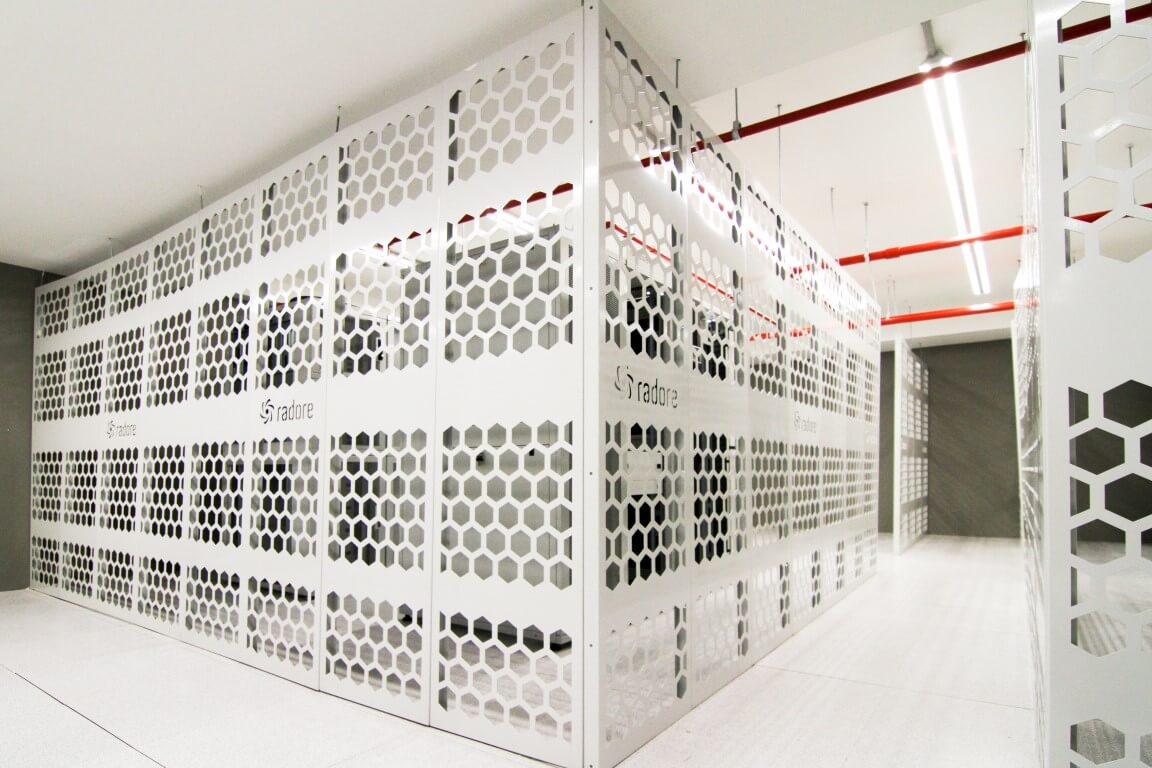

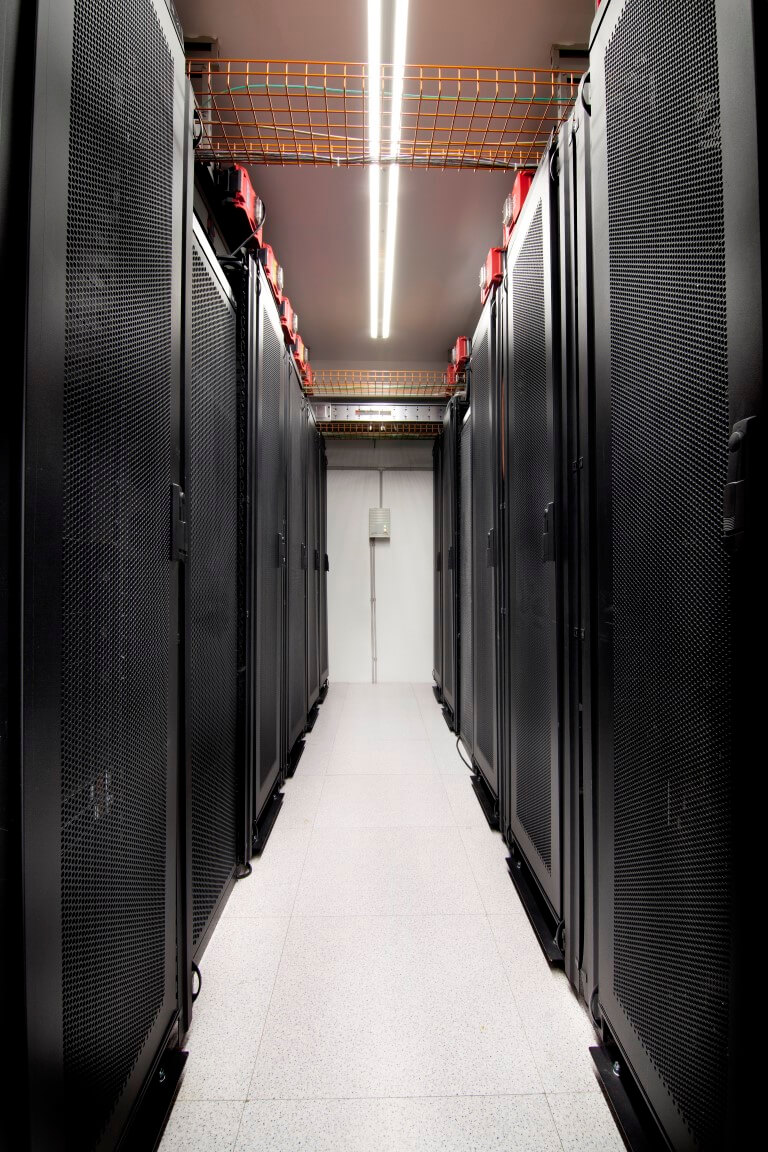

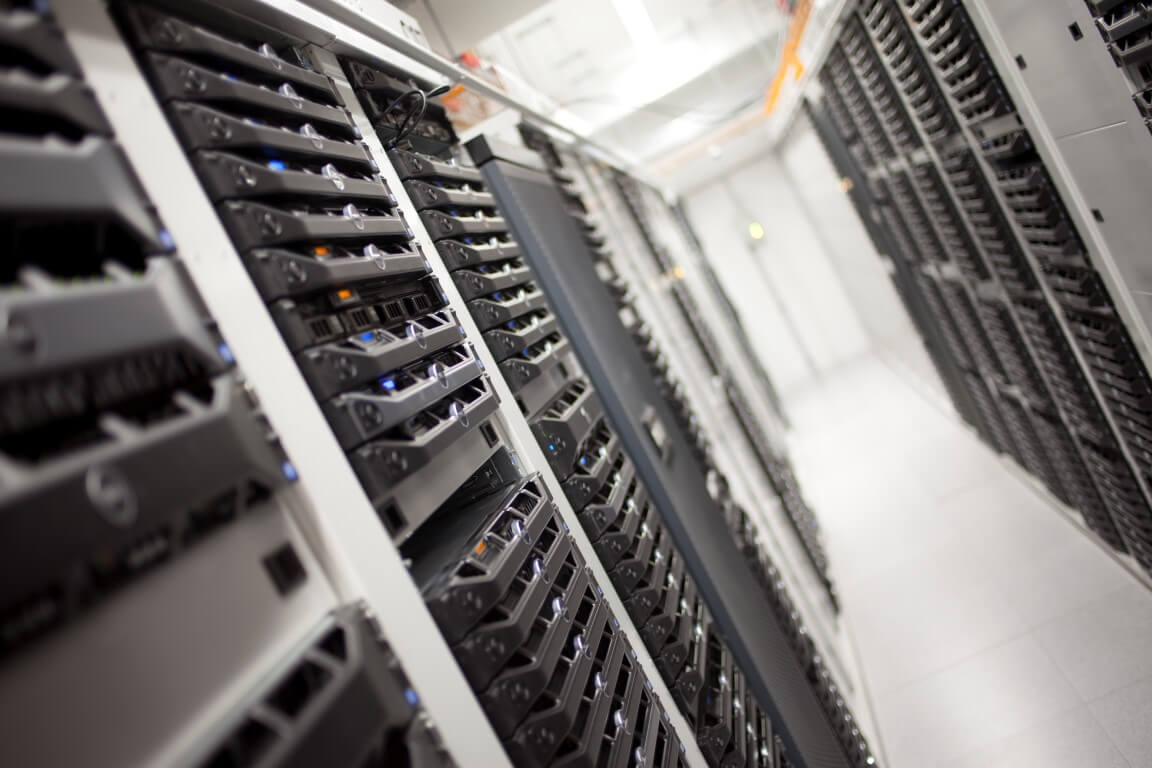

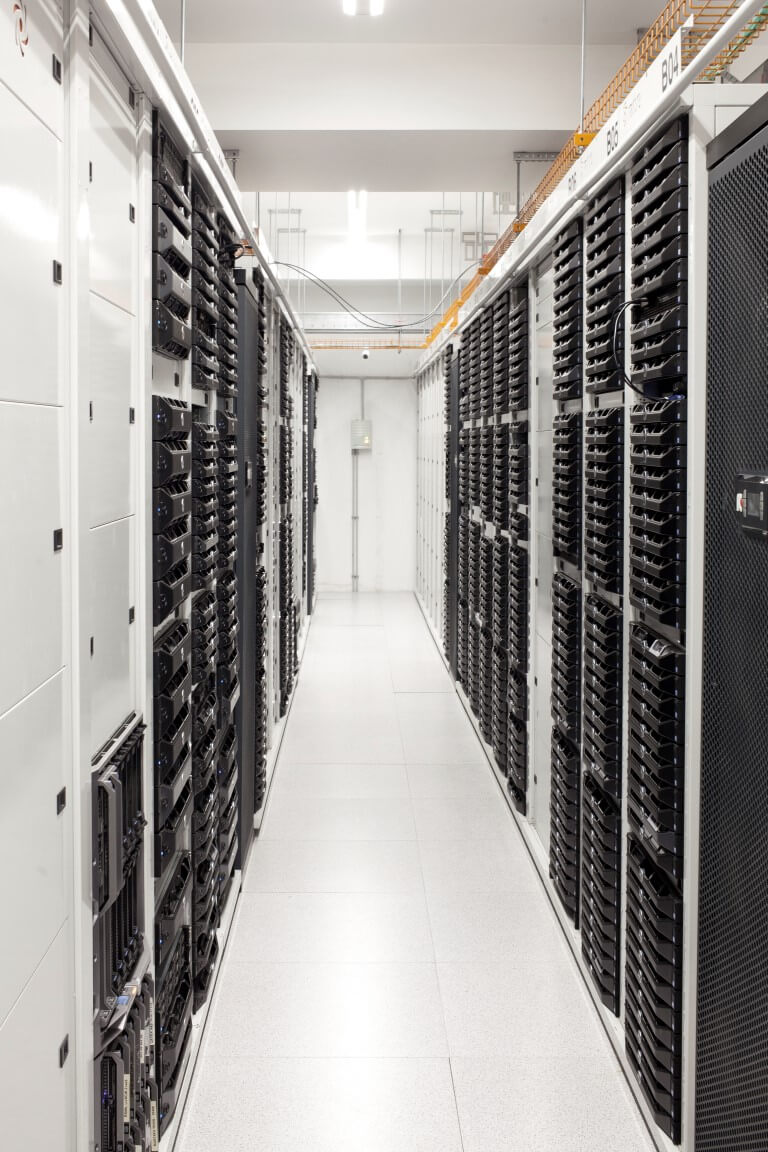

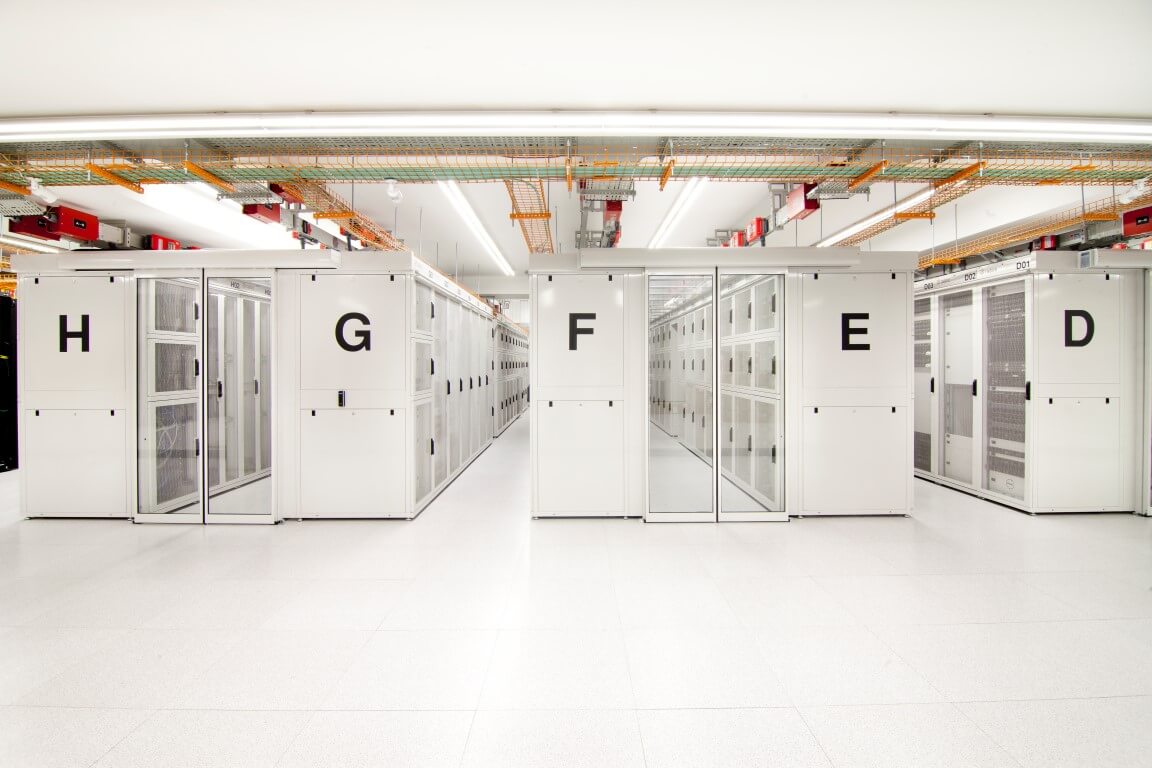

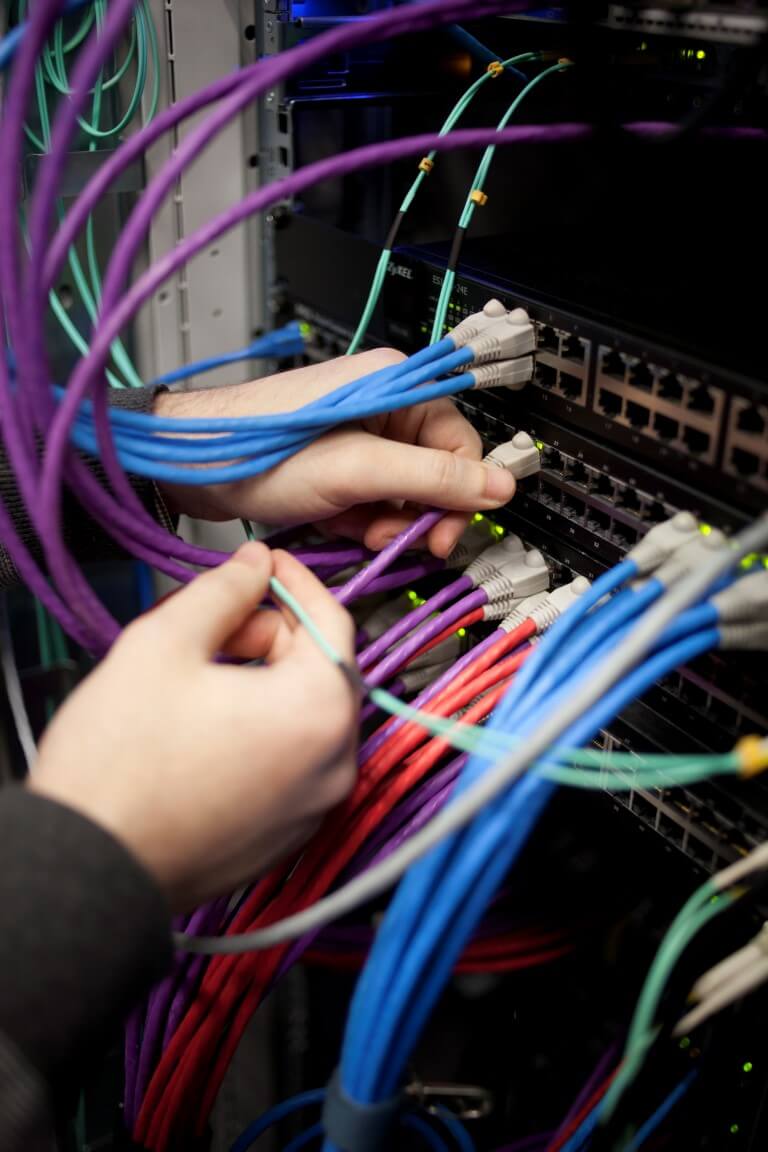

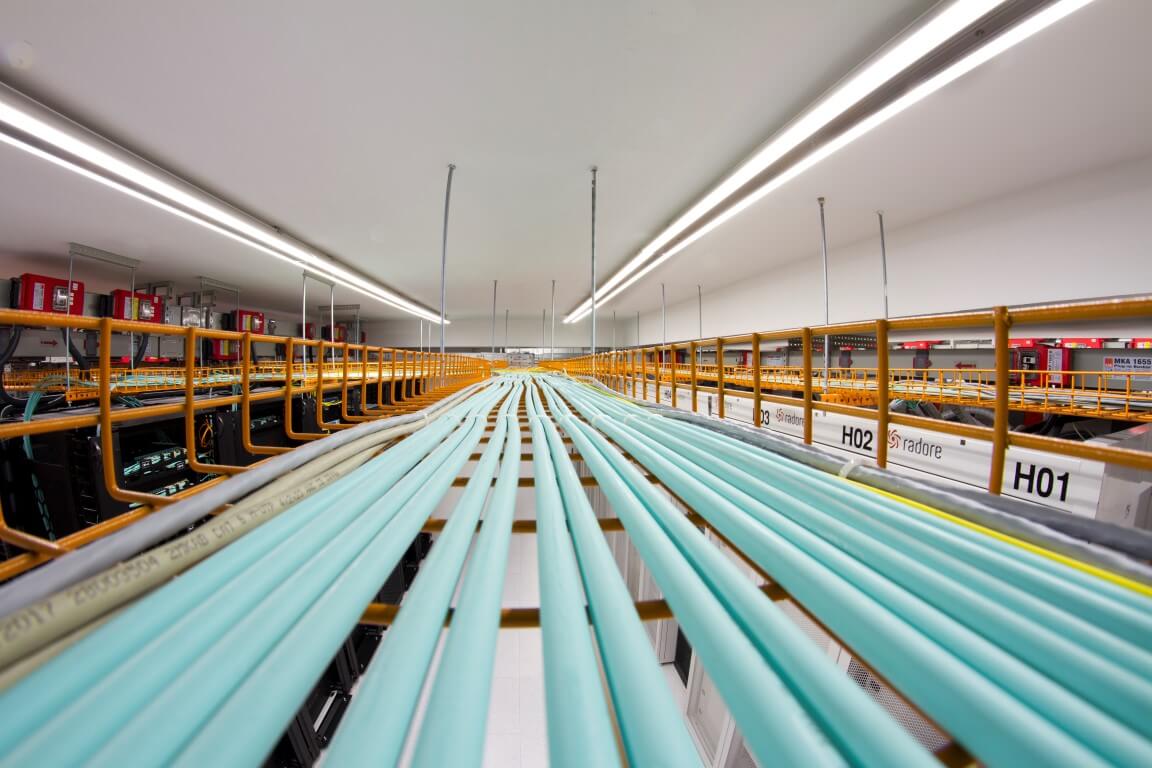

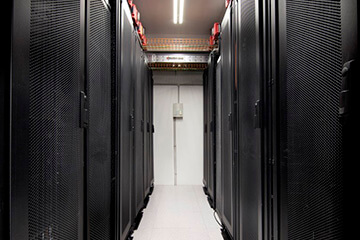

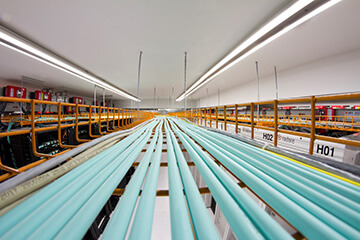

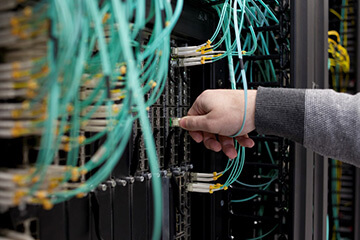

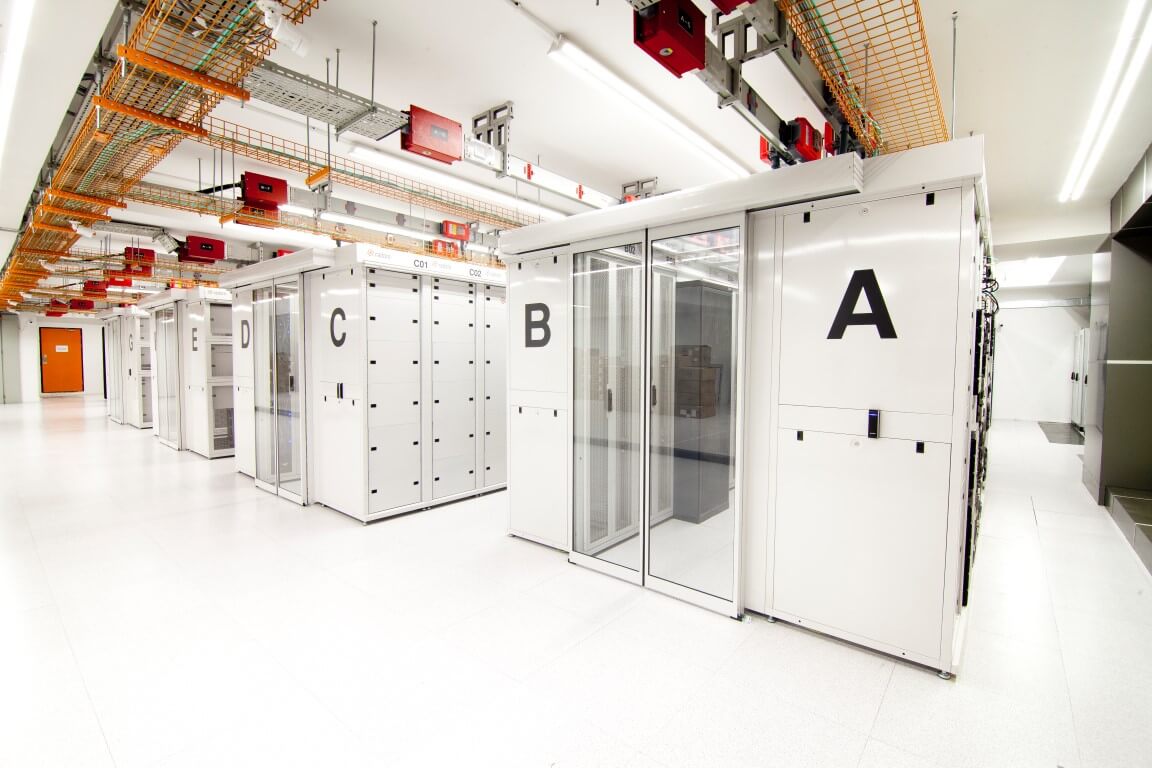

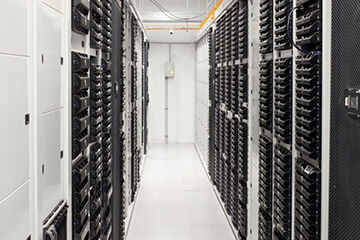

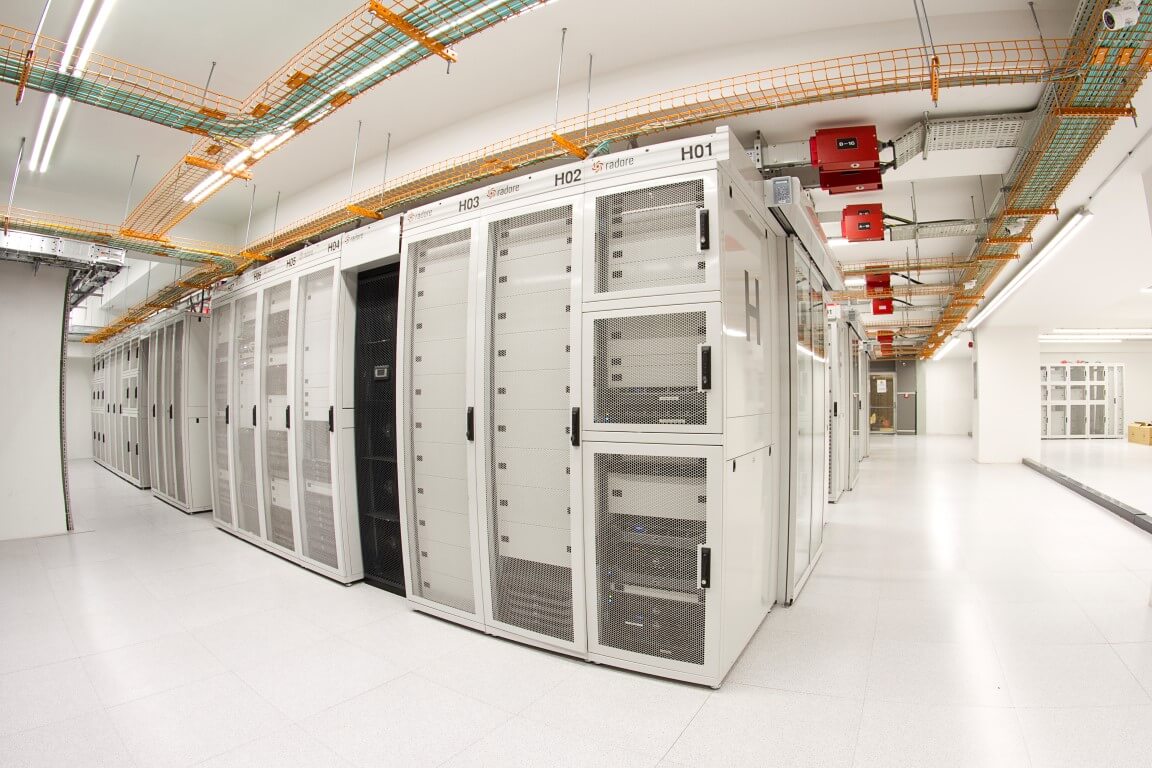

Pictures from the Data Center
